Rarely used
Mob: 58360671
Full Description
Specification

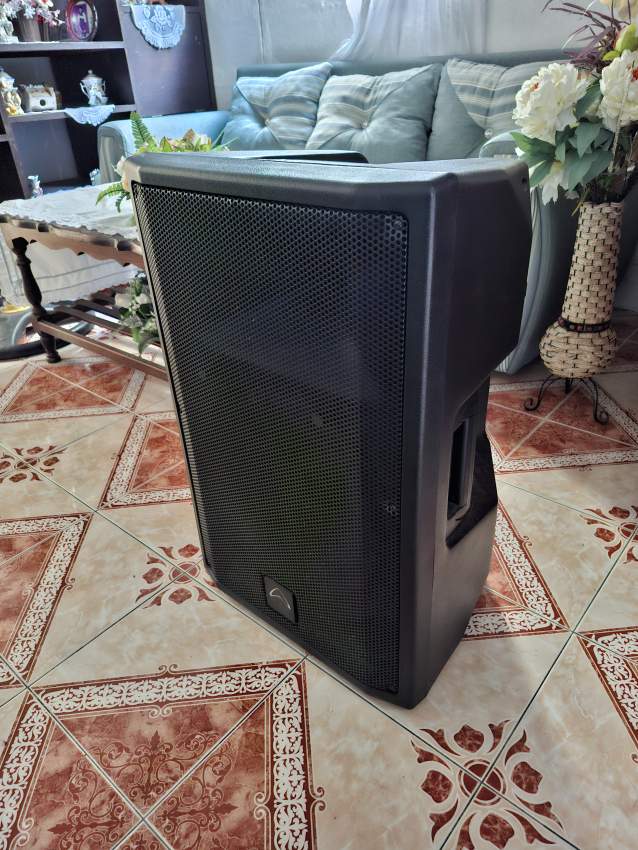

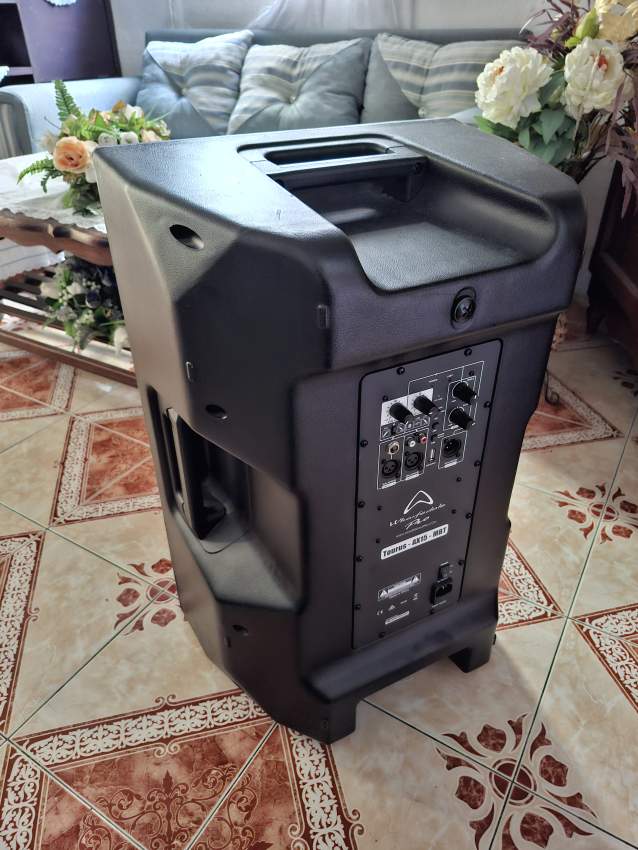

Model Name: Tourus AX15-MBT
System Type: Active 15" 2-Way Bi-Amplified
Frequency Response: 50-20kHz
High Frequency Transducer
Type: Compression Driver
Coil Size: 44.5mm
Exit Size: 25mm
Diaphragm Material: Titanium
Impedance: 8 Ohms
High Frequency Coverage (H x V): 90 degrees x 60 degrees
Amplifiers
LF Power Amplifier (Class D): 350w Continuous / 700w Peak
HF Power Amplifier (Class AB): 100w Continuous / 200w Peak
Crossover Frequency: HI PASS 2.4kHz LOW PASS 2.4kHz
Equalisation: +/- 12dB Gain for bass and treble
Power On Protection: Power switch on/off mute
Thermal Protection: Amplifier shutdown, auto reset
Driver, DC Short Protection: Yes
Limiter Indication: Red LED
Power Indicator: Green LED
Input Type: Balanced / BT / USB
Input Connectors: 2 x TRS Jack, 2x RCA and 2x XLR
Input Impedance: 47KOhms Balanced
Maximum Input Level: 5V
Line Input Sensitivity: -10dB
Mic Input Sensitivity: -40dB
Line Output Connector: Male XLR
Power Supply: SMPS
AC Power Options: 100V - 120V and 220V - 240V
Power On Indicator: LED/Illuminated Front Logo
Rigging/Mounting/Bracket Options
4 x M8
35mm Pole-mount with lock screw
3 handles (2 on the side, 1 on top)
Optional wall bracket: Wharfedale Pro WPB-2 Speaker Bracket, Black
Enclosure
Enclosure Material: Injection Moulded Polypropylene
Colour: Black
Grille: 1.2mm Steel
Optional Soft Cover: Wharfedale Pro Tourus 15 Soft Cover
Dimensions (Unpacked)
Height: 693mm
Width - Front: 455mm
Width - Rear: 262mm
Depth: 401.8mm
Dimensions (Packed)
Height: 762mm
Width: 508mm
Depth: 425mm
Weight : 22kg
Product Code: Tourus-AX15-MBT
